XDCY-1A underground scooptram
● Power system adopts YTO turbo-charged engine or CUMMINS engine , big power, low emissions.
● Using technology leader slewing structure, hydraulic steering, rear axle swing compared to traditional forms, lower failure rate, easy to maintain.
● Walk system uses hydraulic torque converter, power shift transmission, and improve reliability.
● Operating system adopts pilot control, making the operation more simple work, work more efficiently.
● Working brake is a spring brake, hydraulic release, and is equipped with an emergency braking system, the brake is safe and reliable.
● exhaust system is equipped with imported purifier water filtration system, greatly reducing air pollution.
● vehicle chassis plate thickening, enhanced vehicle steel bucket shovel blade made of high strength alloy steel, wear resistance to shear, V-type structure, reducing scooping resistance and longer life.
● Adopt 9.75-18 puncture resistant smooth rubber tires,
● The machine can be shoveling, loading, transport, unloading one operation, compact structure, convenient operation, high efficiency operation for recovery of mines and tunneling mucking, and workplace and road construction formation, transport of materials and other auxiliary operations.
| Model | XDCY-1A |
| Bucket capacity (m3 ) | 1.0 |
| Rated load (t) | 2.0 |
| Weight (t) | 7.0 |
| Min turning radius (outside) (mm) | 4390 |
| Traveling speed (km/h) | 0-9.5 |
| Forward gear I | 0-5 |
| Forward gear II | 0-9.5 |
| Reverse gear | 0-9.5 |
| Grade ability | 20 |
| Overall length (mm) | 5700 |
| Overall width(mm) | 1300 |
| Overall height(mm) | 2000 |
| Wheel base (mm) | 2242 |
| Max. dumping height(mm) | 1250 |
| Dumping reach (mm) | 860 |
| Engine model | YTO4108/CUMMINS |
| Rated power(kw) | 60/70KW |
| Tire type | 9.75-18 |
|
|

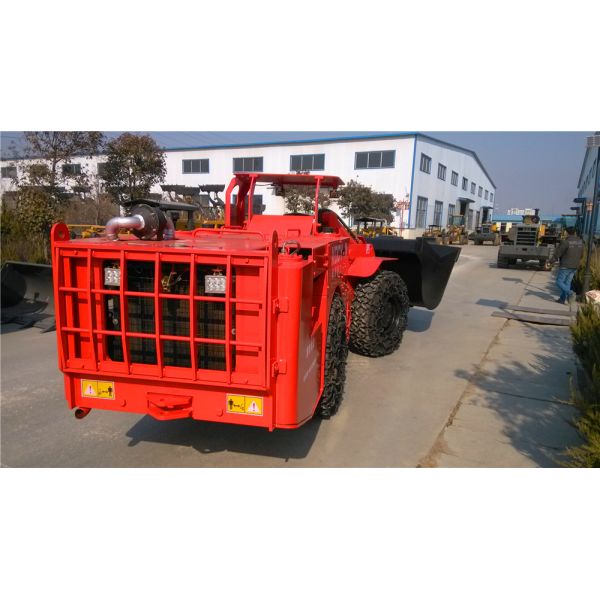

Underground LHD Scooptram XDCY-1A 1.0cbm bucket capacity Images
|
