KATOP 5.0ton CPCD50FR Diesel Forklift

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Name: KATOP 50ton CPCD50FR Diesel Forklift
Brand: KATOP
Price: 1 USD

Brand Name : KATOP

Model Number : 50FR

Certification : CE SGS ISO

Place of Origin : Shandong

MOQ : 1 unit

Supply Ability : 300units per month

Delivery Time : within 30days

Packaging Details : 4PCS/20’CNT; 8PCS/40’CNT

Load capacity : 5.0ton

Dimensions : 4350×1400×2330mm

Total weight : 6800kg

Engine model : LR4A3/4JR3 engine

Engine power : 59kw

Contact Now

KATOP CPCD50FR 5.0Ton Forklift

Main Characteristics

♦ Powerful engine

♦ Hydraulic gear-box and hydraulic steering

♦ Fashionable design, high efficiency

♦ Safe overhead guard

♦ Warning light

♦ Rear light for working in the dark

♦ Side shifter is optional

♦ Optional mast: 2-stage 3.5m/4mmast; 3-stage4.5m/5m//6mmast.

♦ Optional engine: ISUZU engine.

CPCD50FR Specifications:

General		Brand	KATOP
	1	Model		CPCD50F
	2	Rated capacity	kg	5000
	3	Load center	mm	500
	4	Power type		Diesel
	5	Transmission		Hydraulic/Mechanical
Dimensions	6	Lifting height	mm	3000
	7	Free lifting height	mm	150
	8	Turning radius	mm	3000
	9	Overall length	mm	4350
	10	Overall width	mm	1400
	11	Overall height (mast lowered)	mm	2330
	12	Overall height (mast raised)	mm	4265
	13	Overall height (overhead guard)	mm	2330
	14	Fork length	mm	1220
	15	Fork width	mm	150
	16	Fork thickness	mm	50
Performance	17	Max. driving speed (with/without load)	km/h	20/24
	18	Max. lifting speed (with load)	mm/s	375
	19	Max. traction (with/without load)	kn	31/18
	20	Gradeability (with/without load)	%	15/20
	21	Tilting angles (forward/backward)	°	6/12
	22	Service weight	kg	6800
Engine	23	Engine model		LR4A3/4JR3
	24	Power	kw	59
	25	Rated speed	rpm	2400 /2200
	26	Displacement	L	4.3
	27	No. of cylinder		4
Wheel	28	Front overhang	mm	565
	29	Wheel base	mm	2150
	30	Front tread	mm	1180
	31	Rear tread	mm	1190
	32	Front tire		300-15
	33	Rear tire		7.00-12

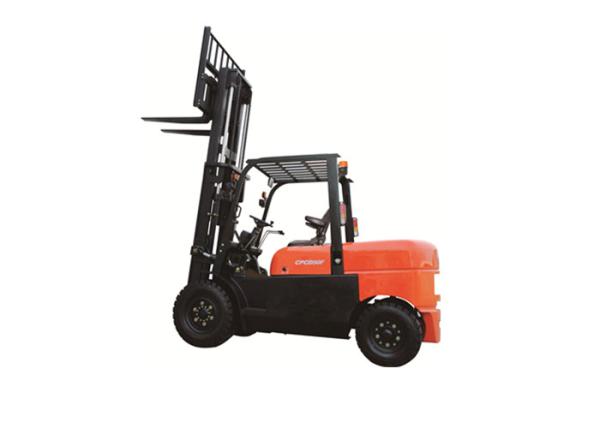

KATOP 5.0ton CPCD50FR Diesel Forklift Images
